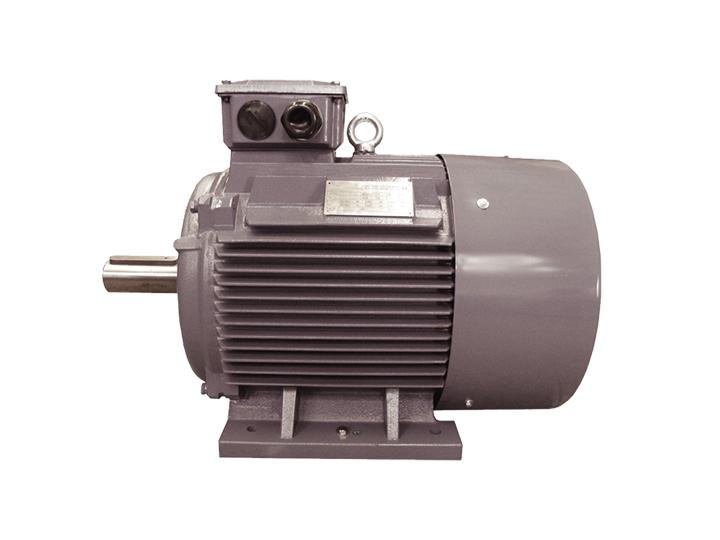

YD系列双速三相异步电动机
产品技术特性产品的电气性能数据产品的机械尺寸数据
       双速电机的工作原理是：电机的变速采用改变绕组的连接方式，也就是说用改变电机旋转磁场的磁极对数来改变它的转速。 　　
       双速电机（风机），平时转速低，有时风机就高速转，主要是通过以下外部控制线路的切换来改变电机线圈的绕组连接方式来实现。 　
       1、在定子槽内嵌有两个不同极对数的共有绕组，通过外部控制线路的切换来改变电机定子绕组的接法来实现磁极对数； 　　
       2、在定子槽内嵌有两个不同极对数的独立绕组； 　　
       3、在定子槽内嵌有两个不同极对数的独立绕组，而且每个绕组又可以有不同的联接。
       精进动力所生产的YD系列变极多速三相异步电动机是一般用途的全封闭自扇冷式鼠笼型电动机，是Y系列（IP44）三相异步电动机的派生系列之一。YD系列电动机的功率等级及功率等级与安装尺寸的对应关系与国外同类产品相当，因此具有与国外同类型产品之间良好的互换性。
       该产品与国内同类型其他系列电动机相比，具有体积小、重量轻、起动转矩大、噪声低、振动小、可靠性高等特点。防护等级为IP44，冷却方式为IC0141。
       该产品适用于机床、矿山、冶金、纺织、印染、化工、农机等行业需要有级变速的各种机械设备。

The working principle of the two-speed motor is that the speed change of the motor is changed by changing the connection mode of the winding, that is to say, the number of poles of the rotating magnetic field of the motor is changed to change its rotation speed.
Two-speed motor (fan), usually low speed, sometimes the fan rotates at high speed, mainly by changing the winding connection mode of the motor coil by switching the following external control lines.
1. Two common pole pairs of different pole pairs are embedded in the stator slot, and the connection of the stator windings of the motor is changed by the switching of the external control circuit to realize the magnetic pole pairs;
2. Two independent windings of different pole pairs are embedded in the stator slot;
3. Two independent windings of different pole pairs are embedded in the stator slot, and each winding can have different connections.
YD series variable pole multi-speed three-phase asynchronous motor produced by Jingjin Power is a general-purpose fully enclosed fan-cooled squirrel-cage motor, which is one of the derivative series of Y series (IP44) three-phase asynchronous motor. The corresponding relationship between the power level and power level of the YD series motor and the installation size is comparable to that of similar foreign products, so it has good interchangeability with the same type of products abroad.
Compared with other series of motors of the same type in China, this product has the characteristics of small size, light weight, large starting torque, low noise, low vibration and high reliability. The degree of protection is IP44 and the cooling method is IC0141.
This product is suitable for various mechanical equipments such as machine tools, mining, metallurgy, textile, printing and dyeing, chemical industry, agricultural machinery and other industries that need to have variable speed.

       YD系列变极多速三相异步电动机是Y系列基础上研制的新型变极多速三相异步电动机，具有效率高、起动转矩大、噪声低、振动小等优点。由于该系列电机可通过改变极改变电动机的转速，从而达到功率的合理匹配并使变速系统得到简化，因而在纺织、印染、化工等行业得到广泛使用。
       YD系列变极多速三相异步电动机在防护等级、使用条件、结构和安装尺寸等方面与Y系列完全相同。其功率等级与安装尺寸的对应关系与国外同类产品相当，因而具有与国内外产品的良好互换性，便于出口和用作进口设备的备用电机。YD系列变极多速三相异步电动机额定电压为380V额定频率为50Hz防护等级为IP44冷去口方法为IC411采用B级绝缘，该系列电动机的结构及安装型式、外形尺寸与丫系列电动机相同。YD系列双速电动机为单绕组，三速电动机为双绕组。利用改变定子绕组的接法以改变电动机的极数，从而使电动机用一套或两套绕组来获得两种或两种以上的转速。该系列电机产品符合《YD系列1P44变极多速三相异步电动机技术条件》由于该系列电机具有可随负载性质的要求而分级地变换转速，从而达到功率的合理匹配和简化变速系统的特点。适用于需要逐级调速的各种传动机构，主要应用于万能、组合、专用切削机床及矿山冶金、纺织、印染、化工、农机等行业。
       YD系列变极多速三相异步电动机有双速，三速，四速等类型，采用单绕组变极方法实现转速变化，用户使用时只需选择相应的接法，即可使电机以对应的转速转动。
       本系列电机的外形与安装尺寸同Y系列电机，主要技术指标达到IEC标准。具有体积小、重量轻、噪音低、启动性能好、运行可靠、维护方便等特点。本系列电机广泛应用于各类需要有级调速的机械设备，可降低整机噪音，节约能源、并使整机结构紧凑。
       我公司可以根据用户需求，设计生产特殊规格的变极多速电机，如YDT风机、泵类负载变极多速电机等。
       本系列电机的使用条件同Y系列电机。

YD series variable pole multi-speed three-phase asynchronous motor is a new type of variable pole multi-speed three-phase asynchronous motor developed on the basis of Y series. It has the advantages of high efficiency, large starting torque, low noise and small vibration. Because this series of motors can change the speed of the motor by changing the pole, thus achieving reasonable matching of power and simplifying the shifting system, it is widely used in textile, printing and dyeing, chemical and other industries.
The YD series variable pole multi-speed three-phase asynchronous motor is identical to the Y series in terms of protection class, operating conditions, structure and installation dimensions. The corresponding relationship between the power level and the installation size is comparable to that of similar foreign products, so it has good interchangeability with domestic and foreign products, and is convenient for export and use as a backup motor for imported equipment. YD series variable pole multi-speed three-phase asynchronous motor rated voltage is 380V rated frequency is 50Hz protection grade is IP44 cold-cut method for IC411 using class B insulation, the structure and installation type and external dimensions of this series of motors are the same as those of 丫 series motors. The YD series two-speed motor is a single winding, and the three-speed motor is a double winding. By changing the connection of the stator windings to change the number of poles of the motor, the motor can be used with one or two sets of windings to obtain two or more speeds. This series of motor products meets the technical requirements of YD series 1P44 variable pole multi-speed three-phase asynchronous motor. Because this series of motors has the ability to change the speed stepwise according to the requirements of load characteristics, it can achieve reasonable matching of power and simplify the characteristics of the shifting system. It is suitable for various transmission mechanisms that require step-by-step speed regulation. It is mainly used in universal, combined, special cutting machine tools and mining metallurgy, textile, printing and dyeing, chemical, agricultural machinery and other industries.
YD series variable-pole multi-speed three-phase asynchronous motor has two-speed, three-speed, four-speed and other types. It adopts single-winding and variable-pole method to realize the change of speed. When users use it, they only need to select the corresponding connection method to make the motor correspond. The speed is rotated.
The shape and installation dimensions of this series of motors are the same as Y series motors, and the main technical indicators meet the IEC standards. It has the characteristics of small size, light weight, low noise, good starting performance, reliable operation and convenient maintenance. This series of motors is widely used in all kinds of mechanical equipment that requires step-speed regulation, which can reduce the noise of the whole machine, save energy and make the whole structure compact.
Our company can design and produce special-sized variable-pole multi-speed motors according to user requirements, such as YDT fans and pump-type variable-pole multi-speed motors.
This series of motors is used in the same condition as the Y series motors.


工作条件
环境温度：-15℃≤tc≤40℃；
海拔：不超过1000米；
额定电压：380V；
频率：50HZ；
连接方式：4/2极和8/4极接法：Y/YY；6/4极和8/6极接法：Y/Y。
工作方式：S1（连续）
绝缘等级：F极；
防护等级：IP54
冷却方式：IC411
注：若有特殊要求，可按客户需要提供

Working conditions
Ambient temperature: -15 ° C ≤ tc ≤ 40 ° C;
Altitude: no more than 1000 meters;
Rated voltage: 380V;
Frequency: 50HZ;
Connection method: 4/2 pole and 8/4 pole connection: Y/YY; 6/4 pole and 8/6 pole connection: Y/Y.
Working mode: S1 (continuous)
Insulation class: F pole;
Protection level: IP54
Cooling method: IC411
Note: If you have special requirements, you can provide according to customer needs.
变极多速三相异步电动机技术数据
型号 极数 额定功率
kW		 转速
r/min		 电流
A		 效率
%		 功率因数
cosΦ		 接法 堵转电流 堵转转矩 最大转矩 噪声
dB
(A)
额定电流 额定转矩 额定转矩
YD801-4/2 4 0.45 1400 1.4 66 0.74 △ 6.5 1.5 1.8 79
2 0.55 2750 1.5 65 0.85 2Y 7 1.7 1.8 79
YD802-4/2 4 0.55 1410 1.7 68 0.74 △ 6.5 1.6 1.8 79
2 0.75 2770 2.0 66 0.85 2Y 7 1.8 1.8 79
YD90S-4/2 4 0.85 1410 2.3 74 0.77 △ 6.5 1.8 1.8 79
2 1.1 2840 2.7 72 0.85 2Y 7 1.9 1.8 79
YD90L-4/2 4 1.3 1400 3.3 76 0.78 △ 6.5 1.8 1.8 83
2 1.8 2830 4.3 74 0.85 2Y 7 2 1.8 83
YD90S-6/4 6 0.65 920 2.3 64 0.68 △ 6.5 1.6 1.8 75
4 0.85 1420 2.3 70 0.79 2Y 7 1.4 1.8 75
YD90L-6/4 6 0.85 930 2.8 66 0.70 △ 6 1.6 1.8 75
4 1.1 1420 3.0 71 0.79 2Y 6.5 1.5 1.8 75
YD90L-8/4 8 0.45 670 1.9 58 0.63 △ 5.5 1.6 1.8 75
4 0.75 1400 1.8 72 0.87 2Y 6.5 1.4 1.8 75
YD90S-8/6 8 0.35 670 1.6 56 0.60 △ 5 1.8 1.8 73
6 0.45 930 1.4 70 0.72 2Y 6 2 1.8 73
YD90L-8/6 8 0.45 680 1.9 59 0.60 △ 5 1.7 1.8 73
6 0.65 920 1.9 71 0.73 2Y 6 1.8 1.8 73
YD100L1-4/2 4 2 1430 4.8 78 0.81 △ 6.5 1.7 1.8 87
2 2.4 2850 5.6 76 0.86 2Y 7 1.9 1.8 87
YD100L2-4/2 4 2.4 1430 5.6 79 0.83 △ 6.5 1.6 1.8 87
2 3 2850 6.6 77 0.89 2Y 7 1.7 1.8 87
YD100L1-6/4 6 1.3 940 3.8 74 0.70 △ 6 1.7 1.8 78
4 1.8 1440 4.4 77 0.80 2Y 6.5 1.4 1.8 78
YD100L2-6/4 6 1.5 940 4.3 75 0.70 △ 6 1.6 1.8 78
4 2.2 1430 5.4 77 0.80 2Y 6.5 1.4 1.8 78

型号 极数 额定功率
kW		 转速
r/min		 电流
A		 效率
%		 功率因数
cosΦ		 接法 堵转电流 堵转转矩 最大转矩 噪声
dB
(A)
额定电流 额定转矩 额定转矩
YD100L-8/4 8 0.85 700 3.1 67 0.63 △ 5.5 1.6 1.8 78
4 1.5 1410 3.5 74 0.88 2Y 6.5 1.4 1.8 78
YD100L-8/6 8 0.75 710 2.9 65 0.60 △ 5 1.8 1.8 73
6 1.1 940 3.0 75 0.73 2Y 6 1.9 1.8 73
YD100L-6/4/2 6 0.75 950 2.6 67 0.65 △ 5.5 1.8 1.8 87
4 1.3 1450 3.7 72 0.75 2Y 6 1.6 1.8 87
2 1.8 2900 4.5 71 0.85 △ 7 1.6 1.8 87
YD112M-4/2 4 3.3 1440 7.4 82 0.83 2Y 6.5 1.9 1.8 87
2 4 2890 8.6 79 0.89 △ 7 2 1.8 87
YD112M-6/4 6 2.2 950 5.7 78 0.75 2Y 6 1.8 1.8 82
4 2.8 1430 6.7 77 0.82 △ 6.5 1.5 1.8 82
YD112M-8/4 8 1.5 700 5.0 72 0.63 2Y 5.5 1.7 1.8 82
4 2.4 1420 5.0 78 0.88 △ 6.5 1.7 1.8 82
YD112M-8/6 8 1.3 710 4.5 72 0.61 2Y 5 1.7 1.8 75
6 1.8 940 4.8 78 0.73 △ 6 1.9 1.8 75
YD112M-6/4/2 6 1.1 960 3.5 73 0.65 2Y 5.5 1.7 1.8 87
4 2 1450 5.2 73 0.81 △ 6 1.4 1.8 87
2 2.4 2920 5.8 74 0.85 2Y 7 1.6 1.8 87
YD112M-8/4/2 8 0.65 690 2.7 59 0.63 △ 4.5 1.4 1.8 87
4 2 1450 5.2 73 0.81 2Y 6 1.3 1.8 87
2 2.4 2920 5.8 74 0.85 △ 7 1.2 1.8 87
YD112M-8/6/4 8 0.85 710 3.7 62 0.56 2Y 5.5 1.7 1.8 82
6 1 950 3.1 68 0.73 △ 6.5 1.3 1.8 82
4 1.5 1430 3.5 75 0.86 2Y 7 1.5 1.8 82
YD132S-4/2 4 4.5 1450 9.8 83 0.84 △ 6.5 1.7 1.8 91
2 5.5 2870 11.9 79 0.89 2Y 7 1.8 1.8 91

型号 极数 额定功率
kW		 转速
r/min		 电流
A		 效率
%		 功率因数
cosΦ		 接法 堵转电流 堵转转矩 最大转矩 噪声
dB
(A)
额定电流 额定转矩 额定转矩
YD132M-4/2 4 6.5 1450 13.8 84 0.85 △ 6.5 1.7 1.8 91
2 8 2880 17.0 80 0.89 2Y 7 1.8 1.8 91
YD132S-6/4 6 3 970 7.7 79 0.75. △ 6 1.8 1.8 82
4 4 1440 9.5 78 0.82 2Y 6.5 1.7 1.8 82
YS132M-6/4 6 4 970 9.8 82 0.76 △ 6 1.6 1.8 82
4 5.5 1450 12.3 80 0.85 2Y 6.5 1.4 1.8 82
YD132S-8/4 8 2.2 720 7.0 75 0.64 △ 5.5 1.5 1.8 82
4 3.3 1440 7.1 80 0.88 2Y 6.5 1.7 1.8 82
YD132M-8/4 8 3 720 9.0 78 0.65 △ 5.5 1.5 1.8 82
4 4.5 1450 9.3 82 0.89 2Y 6.5 1.6 1.8 79
YD132S-8/6 8 1.8 720 5.7 76 0.62 △ 5 1.6 1.8 79
6 2.4 970 6.2 80 0.73 2Y 6 1.9 1.8 79
YD132M-8/6 8 2.6 720 8.2 78 0.62 △ 5 1.9 1.8 79
6 3.7 970 9.4 82 0.73 2Y 6 1.9 1.8 91
YD132S-6/4/2 6 1.8 970 5.1 75 0.71 Y 5.5 1.4 1.8 91
4 2.6 1460 6.1 78 0.83 △ 6 1.3 1.8 91
2 3 2910 7.4 71 0.87 2Y 7 1.7 1.8 91
YD132SM1-6/4/2 6 2.2 970 6.0 77 0.72 Y 5.5 1.3 1.8 91
4 3.3 1460 7.5 80 0.84 △ 6 1.3 1.8 91
2 4 2910 8.8 76 0.91 2Y 7 1.7 1.8 91
YD132M2-6/4/2 6 2.6 970 6.8 80 0.72 Y 5.5 1.5 1.8 91
4 4 1460 9.0 80 0.84 △ 6 1.4 1.8 91
2 5 2920 10.8 71 0.91 2Y 7 1.7 1.8 91
YD132S-8/4/2 8 1 720 3.6 69 0.61 Y 4.5 1.4 1.8 91
4 2.6 1460 6.1 78 0.83 △ 6 1.2 1.8 91
2 3 2910 7.1 74 0.87 2Y 7 1.4 1.8 91

型号 极数 额定功率
kW		 转速
r/min		 电流
A		 效率
%		 功率因数
cosΦ		 接法 堵转电流 堵转转矩 最大转矩 噪声
dB
(A)
额定电流 额定转矩 额定转矩
YD132M-8/4/2 8 1.3 720 4.6 71 0.61 Y 4.5 1.5 1.8 91
4 3.7 1460 8.4 80 0.84 △ 6 1.3 1.8 91
2 4.5 2910 10.0 75 0.91 2Y 7 1.4 1.8 91
YD132S-8/6/4 8 1.1 720 4.1 68 0.60 △ 5.5 1.4 1.8 82
6 1.5 970 4.2 74 0.73 2Y 6.5 1.3 1.8 82
4 1.8 1450 4.0 78 0.87 Y 7 1.3 1.8 82
YD132M1-8/6/4 8 1.5 720 5.2 71 0.62 △ 5.5 1.3 1.8 82
6 2 970 5.4 77 0.73 2Y 6.5 1.5 1.8 82
4 2.2 1460 4.9 79 0.87 Y 7 1.4 1.8 82
YD132M2-8/6/4 8 1.8 720 6.1 72 0.62 △ 5.5 1.5 1.8 82
6 2.6 970 6.8 78 0.74 2Y 6.5 1.7 1.8 82
4 3 1460 6.5 80 0.87 Y 7 1.5 1.8 82
YD160M-4/2 4 9 1460 18.5 87 0.85 △ 6.5 1.6 1.8 95
2 11 2920 22.8 82 0.89 2Y 7 1.8 1.8 95
YD160L-4/2 4 11 1450 22.3 87 0.86 △ 6.5 1.7 1.8 95
2 14 2910 28.7 82 0.90 2Y 7 1.9 1.8 95
YD160M-6/4 6 6.5 970 15.1 84 0.78 △ 6.5 1.5 1.8 86
4 8 1450 17.4 83 0.84 2Y 6 1.5 1.8 86
YD160L-6/4 6 9 970 20.6 85 0.78 △ 6.5 1.6 ,
1.8		 86
4 , , , 11 1450 23.3 84 0.85 2Y 6 1.7 1.8 86
YD160M-8/4 8 5 970 13.9 83 0.66 △ 5.5 1.5 1.8 86
4 7.5 1450 15.2 84 0.89 2Y 6.5 1.6 1.8 86
YD160L-8/4 8 7 730 19 85 0.66 △ 5.5 1.5 1.8 86
4 11 1450 21.8 86 0.89 2Y 6.5 1.6 1.8 86
YD160M-8/6 8 4.5 730 13.3 83 0.62 △ 5 1.6 1.8 83
6 6 970 14.7 85 0.73 2Y 6 1.9 1.8 83

型号 极数 额定功率
kW		 转速
r/min		 电流
A		 效率
%		 功率因数
cosΦ		 接法 堵转电流 堵转转矩 最大转矩 噪声
dB
(A)
额定电流 额定转矩 额定转矩
YD160L-8/6 8 6 730 17.5 84 0.62 △ 5 1.6 1.8 83
6 8 970 19.3 86 0.73 2Y 6 1.9 1.8 83
YD160M-12/6 12 2.6 480 11.6 74 0.46 △ 4 1.2 1.8 79
6 5 970 11.9 84 0.76 2Y 6 1.4 1.8 79
YD160L-12/6 12 3.7 480 16.1 76 0.46 △ 4 1.2 1.8 83
6 7 970 15.8 85 0.79 2Y 6 1.4 1.8 83
YD160M-6/4/2 6 3.7 970 9.5 82 0.72 Y 5.5 1.5 1.8 95
4 5 1460 11.2 81 0.84 △ 6 1.3 1.8 95
2 6 2930 13.1 76 0.91 2Y 7 1.4 1.8 95
YD160L-6/4/2 6 4.5 970 11.4 83 0.72 Y 5.5 1.5 1.8 95
4 7 1460 15.1 83 0.82 △ 6 1.2 1.8 95
2 9 2930 18.8 79 0.92 2Y 7 1.3 1.8 95
YD160M-8/4/2 8 2.2 730 7.53 75 0.59 Y 4.5 1.4 1.8 95
4 5 1460 11.2 81 0.84 △ 6 1.3 1.8 95
2 6 2930 13.1 76 0.91 2Y 7 1.4 1.8 95
YD160L-8/4/2 8 2.8 730 9.18 77 0.60 Y 4.5 1.3 1.8 95
4 7 1460 15.1 83 0.85 △ 6 1.2 1.8 95
2 9 2930 18.8 79 0.92 2Y 7 1.3 1.8 95
YD160M-8/6/4 8 3.3 730 10.2 79 0.62 △ 5.5 1.7 1.8 86
6 4 970 9.85 81 0.76 Y 6.5 1.4 1.8 86
4 5.5 1450 11.5 83 0.87 2Y 7 1.5 1.8 86
YD160L-8/6/4 8 4.5 730 13.8 80 0.62 △ 5.5 1.6 1.8 86
6 6 970 14.4 83 0.76 Y 6.5 1.6 1.8 86
4 7.5 1460 15.5 84 0.87 2Y 7 1.5 1.8 86

型号 极数 额定功率
kW		 转速
r/min		 电流
A		 效率
%		 功率因数
cosΦ		 接法 堵转电流 堵转转矩 最大转矩 噪声
dB
(A)
额定电流 额定转矩 额定转矩
YD160L-8/6 8 6 730 17.5 84 0.62 △ 5 1.6 1.8 83
6 8 970 19.3 86 0.73 2Y 6 1.9 1.8 83
YD160M-12/6 12 2.6 480 11.6 74 0.46 △ 4 1.2 1.8 79
6 5 970 11.9 84 0.76 2Y 6 1.4 1.8 79
YD160L-12/6 12 3.7 480 16.1 76 0.46 △ 4 1.2 1.8 83
6 7 970 15.8 85 0.79 2Y 6 1.4 1.8 83
YD160M-6/4/2 6 3.7 970 9.5 82 0.72 Y 5.5 1.5 1.8 95
4 5 1460 11.2 81 0.84 △ 6 1.3 1.8 95
2 6 2930 13.1 76 0.91 2Y 7 1.4 1.8 95
YD160L-6/4/2 6 4.5 970 11.4 83 0.72 Y 5.5 1.5 1.8 95
4 7 1460 15.1 83 0.82 △ 6 1.2 1.8 95
2 9 2930 18.8 79 0.92 2Y 7 1.3 1.8 95
YD160M-8/4/2 8 2.2 730 7.53 75 0.59 Y 4.5 1.4 1.8 95
4 5 1460 11.2 81 0.84 △ 6 1.3 1.8 95
2 6 2930 13.1 76 0.91 2Y 7 1.4 1.8 95
YD160L-8/4/2 8 2.8 730 9.18 77 0.60 Y 4.5 1.3 1.8 95
4 7 1460 15.1 83 0.85 △ 6 1.2 1.8 95
2 9 2930 18.8 79 0.92 2Y 7 1.3 1.8 95
YD160M-8/6/4 8 3.3 730 10.2 79 0.62 △ 5.5 1.7 1.8 86
6 4 970 9.85 81 0.76 Y 6.5 1.4 1.8 86
4 5.5 1450 11.5 83 0.87 2Y 7 1.5 1.8 86
YD160L-8/6/4 8 4.5 730 13.8 80 0.62 △ 5.5 1.6 1.8 86
6 6 970 14.4 83 0.76 Y 6.5 1.6 1.8 86
4 7.5 1460 15.5 84 0.87 2Y 7 1.5 1.8 86

YD系列变极多速三相异步电动机技术参数
YD 系列电机技术参数 380V/50Hz
电机型号 极数 额定功率 满载时 额定转矩 堵转转矩 最大转矩 堵转电流
转速 电流 效率 功率因素 额定转矩 额定转矩 额定电流
KW RPM Amp η% Cosφ N.m Tst/Tn Tmax/Tn lst/ln
YD-80M1-4/2 4 0.45 1420  1.40  66.0  0.74  3.03  1.5  1.8  6.5
2 0.55 2840  1.51  65.0  0.85  1.85  1.7  1.8  7.0
YD-80M2-4/2 4 0.55 1420  1.66  68.0  0.74  3.70  1.6  1.8  6.5
2 0.75 2840  2.03  66.0  0.85  2.52  1.8  1.8  7.0
YD-90S-4/2 4 0.85 1430  2.27  74.0  0.77  5.68  1.8  1.8  6.5
2 1.1 2850  2.77  71.0  0.85  3.69  1.9  1.8  7.0
YD-90L-4/2 4 1.3  1430  3.33  76.0  0.78  8.68  1.8  1.8  6.5
2 1.8  2850  4.41  73.0  0.85  6.03  2.0  1.8  7.0
YD-100L1-4/2 4 2.0  1430  4.81  78.0  0.81  13.40  1.7  1.8  6.5
2 2.4 2850  5.58  76.0  0.86  8.04  1.9  1.8  7.0
YD-100L2-4/2 4 2.4 1430  5.56  79.0  0.83  16.00  1.6  1.8  6.5
2 3 2850  6.65  77.0  0.89  10.10  1.7  1.8  7.0
YD-112M-4/2 4 3.3 1450  7.37  82.0  0.83  21.70  1.9  1.8  6.5
2 4 2880  8.64  79.0  0.89  13.30  2.0  1.8  7.0
YD-132S-4/2 4 4.5 1450  9.81  83.0  0.84  29.60  1.7  1.8  6.5
2 5.5 2880  11.90  79.0  0.89  18.20  1.8  1.8  7.0
YD-132M-4/2 4 6.5 1450  13.80  84.0  0.85  42.80  1.7  1.8  6.5
2 8 2880  17.10  80.0  0.89  26.50  1.8  1.8  7.0
YD-160M-4/2 4 9.0  1460  18.50  87.0  0.85  58.90  1.6  1.8  6.5
2 11.0  2920  22.90  82.0  0.89  36.00  1.8  1.8  7.0
YD-160L-4/2 4 11.0  1460  22.30  87.0  0.86  72.00  1.7  1.8  6.5
2 14 2920  28.80  82.0  0.90  45.80  1.9  1.8  7.0
YD-180M-4/2 4 15 1470  29.40  89.0  0.87  97.40  1.8  1.8  6.5
2 18.5 2940  36.70  85.0  0.90  60.10  1.9  1.8  7.0
YD-180L-4/2 4 18.5 1470  35.90  89.0  0.88  120.20  1.6  1.8  6.5
2 22 2940  42.70  86.0  0.91  71.50  1.8  1.8  7.0
YD-90S-6/4 4 26 1470  49.90  89.0  0.89  168.90  1.4  1.8  6.0
2 30 2940  58.30  85.0  0.92  97.45  1.6  1.8  6.5
YD-90L-6/4 6 0.65 920  2.27  64.0  0.68  6.75  1.6  1.8  6.0
4 0.85 1400  2.34  70.0  0.79  5.80  1.4  1.8  6.5
YD-90L-6/4 6 0.9  930  2.80  66.0  0.70  8.73  1.6  1.8  6.0
4 1.1  1400  2.98  71.0  0.79  7.50  1.5  1.8  6.5
YD-100L1-6/4 6 1.3  940  3.81  74.0  0.70  13.20  1.7  1.8  6.0
4 1.8 144  4.44  77.0  0.80  11.90  1.4  1.8  6.5
YD-100L2-6/4 6 1.5 940  4.34  75.0  0.70  15.20  1.6  1.8  6.0
4 2.2 1440  5.43  77.0  0.80  14.60  1.4  1.8  6.5
YD-112M-6/4 6 2.2 960  5.71  78.0  0.75  21.90  1.8  1.8  6.0
4 2.8 1450  6.74  77.0  0.82  18.40  1.5  1.8  6.5
YD-132S-6/4 6 3 970  7.69  79.0  0.75  29.50  1.8  1.8  6.0
4 4 1450  9.50  8.0  0.82  26.30  1.7  1.8  6.5
YD-132M-6/4 6 4 970  9.75  82.0  0.76  39.40  1.6  1.8  6.0
4 5.5 1450  12.30  80.0  0.85  36.20  1.4  1.8  6.5
YD-160M-6/4 6 6.5  970  15.10  84.0  0.78  64.00  1.5  1.8  6.0
4 8.0  1460  17.60  82.0  0.84  52.30  1.5  1.8  6.5
YD-160L-6/4 6 9.0  970  20.60  85.0  0.78  88.60  1.6  1.8  6.0
4 11 1460  23.70  83.0  0.85  72.00  1.7  1.8  6.5
YD-180M-6/4 6 11 980  25.90  85.0  0.76  107.20  1.6  1.8  6.0
4 14 1470  29.80  84.0  0.85  91.00  1.7  1.8  6.5
YD-180L-6/4 6 13.0  980  29.40  86.0  0.78  126.70  1.7  1.8  6.0
4 16 1470  33.60  85.0  0.85  103.90  1.7  1.8  6.5
YD-200L-6/4 6 18.5 980  41.40  87.0  0.78  180.30  1.6  1.8  6.5
4 22 1470  44.90  86.5  0.86  142.90  1.5  1.8  7.0
YD-90L-8/4 8 0.5  700  1.87  58.0  0.63  6.14  1.6  1.8  5.5
4 0.75 1400  1.82  72.0  0.87  5.12  1.4  1.8  6.5
YD-100L-8/4 8 0.85 700  3.06  67.0  0.63  11.60  1.6  1.8  5.5
4 1.5 1410  3.50  74.0  0.88  10.20  1.4  1.8  6.5
YD-112M-8/4 8 1.5  700  5.02  72.0  0.63  20.50  1.7  1.8  5.5
4 2.4 1410  5.31  78.0  0.88  16.30  1.7  1.8  6.5
YD-132S-8/4 8 2.2 720  6.96  75.0  0.64  29.20  1.5  1.8  5.5
4 3.3 1440  7.12  80.0  0.88  21.90  1.7  1.8  6.5
YD-132M-8/4 8 3.0  720  8.99  78.0  0.65  39.80  1.5  1.8  5.5
4 4.5 1440  9.37  82.0  0.89  29.80  1.6  1.8  6.5
YD-160M-8/4 8 5 730  13.90  83.0  0.66  65.40  1.5  1.8  5.5
4 7.5 1450  15.20  84.0  0.89  39.40  1.6  1.8  6.5
YD-160L-8/4 8 7.0  730  19.00  85.0  0.66  91.60  1.5  1.8  5.5
4 11 1450  21.80  86.0  0.89  72.40  1.6  1.8  6.5
YD-180L-8/4 8 11 730  26.70  87.0  0.72  143.90  1.5  1.8  6.0
4 17 1460  32.30  88.0  0.91  111.20  1.5  1.8  7.0
YD-200L1-8/4 8 14.0  730  33.00  87.0  0.74  183.20  1.8  1.8  6.0
4 22 1460  41.30  88.0  0.92  143.90  1.7  1.8  7.0
YD-200L2-8/4 8 17 730  40.10  87.0  0.74  222.40  1.5  1.8  6.0
4 26 1460  48.80  88.0  0.92  170.10  1.7  1.8  7.0
YD-90S-8/6 8 0.35  700  1.58  56.0  0.60  4.78  1.8  1.8  5.0
4 0.45  930  1.36  70.0  0.72  4.62  2.0  1.8  6.0
YD-90L-8/6 8 0.45  700  1.93  59.0  0.60  6.14  1.7  1.8  5.0
6 0.65  930  1.91  71.0  0.73  6.67  1.8  1.8  6.0
YD-100L-8/6 8 0.75  710  2.92  65.0  0.60  10.10  1.8  1.8  5.0
6 1.1  950  3.05  75.0  0.73  11.10  1.9  1.8  6.0
YD-112M-8/6 8 1.3  710  4.50  72.0  0.61  17.50  1.7  1.8  5.0
6 1.8  950  4.80  78.0  0.73  18.10  1.9  1.8  6.0
YD-132S-8/6 8 1.8  730  5.80  76.0  0.62  23.50  1.6  1.8  5.0
6 2.4  970  6.24  80.0  0.73  23.60  1.9  1.8  6.0
YD-132M-8/6 8 2.6  730  8.17  78.0  0.62  34.00  1.9  1.8  5.0
6 3.7  970  9.39  82.0  0.73  36.40  1.9  1.8  6.0
YD-160M-8/6 8 4.5  730  13.30  83.0  0.62  58.90  1.6  1.8  5.0
6 6.0  980  14.70  85.0  0.73  58.50  1.9  1.8  6.0
YD-160L-8/6 8 6.0  730  17.50  84.0  0.62  78.50  1.6  1.8  5.0
6 8.0  980  19.40  86.0  0.73  78.00  1.9  1.8  6.0
YD-180M-8/6 8 7.5  730  21.90  84.0  0.62  98.10  1.9  1.8  5.0
6 10.0  980  21.20  86.0  0.73  97.40  1.9  1.8  6.0
YD-180L-8/6 8 9 730  24.80  85.0  0.65  117.70  1.8  1.8  5.0
6 12 980  28.30  86.0  0.75  116.90  1.8  1.8  6.0
YD-200L1-8/6 8 12.0  730  32.60  86.0  0.65  157.00  1.8  1.8  5.0
6 17 980  39.10  87.0  0.76  165.70  2.0  1.8  6.0
YD-200L2-8/6 8 15 730  40.30  87.0  0.65  196.20  1.8  1.8  5.0
6 20 980  45.40  88.0  0.76  194.90  2.0  1.8  6.0


上一篇：Y2EJ系列制动三相异步电动机
下一篇：船用电机

Related Products

相关产品

Copy right © 2019 无锡精进动力科技有限公司 版权所有 网站制作：无锡网科
