LOG1系列新能源物流车专用三相异步电动机
       LOG系列交流三相异步电动机(以下简称电动机)主要应用于电动叉车、电动搬运车、电动牵引车、高尔夫球车、旅游观光车、电动汽车等由蓄电池提供动力的各种车辆,包括牵引电动机、泵用电动机和动力转向电动机。该系列电动机具有调速范围宽、过载能力大、机械强度高、运行稳定等诸多优点,是新一代高效节能环保型产品。可以满足车辆重载起动、满载爬坡及平路高速运行等多种工况。
       1. 电动机在下列条件下使用能正常运行:
       1.1 环境空气温度不超过45℃ ;
       1.2 相对湿度不大于90%(20℃);
       1.3 海拔不超过1000m。
       2. 电动机可使用的蓄电池电压为24V, 48V, 72V。交流额定电压和额定频率可根据需要进行设计。
       3. 电动机的基准工作制为S2-30min或S2-60bmin

LOG series AC three-phase asynchronous motor (hereinafter referred to as motor) is mainly used in electric forklifts, electric pallet trucks, electric tractors, golf carts, tourist vehicles, electric vehicles and other vehicles powered by batteries, including traction motors. Pump motor and power steering motor. This series of motors has many advantages such as wide speed regulation range, large overload capacity, high mechanical strength and stable operation. It is a new generation of high-efficiency energy-saving and environment-friendly products. It can meet various working conditions such as heavy-duty starting, full-load climbing and high-speed running of flat road.
1. The motor can operate normally under the following conditions:
1.1 Ambient air temperature does not exceed 45 ° C;
1.2 Relative humidity is not more than 90% (20 ° C);
1.3 The altitude does not exceed 1000m.
2. The battery voltage that can be used by the motor is 24V, 48V, 72V. The AC rated voltage and rated frequency can be designed as needed.
3. The reference work of the motor is S2-30min or S2-60bmin
       1. 防护等级
       电动机的防护等级为IP20(开启式)或IP44(封闭式)。
       2. 冷却方式
       电动机的冷却方式为IC410(自然冷却)或IC411(自扇冷却)。

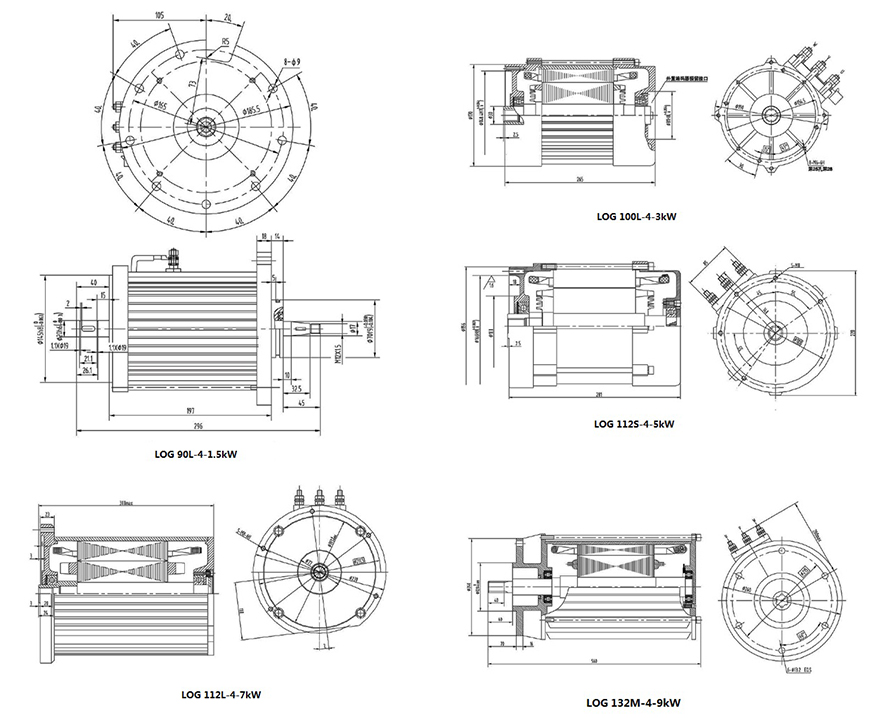

       3. 结构及安装型式
       电动机可以立式或卧式安装,轴伸型式为圆柱形、圆锥形、内花键、外花键均可提供。
       4. 绝缘等级
       电动机采用H级绝缘,有效地提高了电机的使用寿命。
       5. 定子采用VPI 真空压力浸漆工艺,提高了整体绝缘能力和机械强度。
       6. 转子采用特殊设计,提高了效率和转矩。
       7. 编码器选用SKF轴承内置编码器或外置编码器。
       8. 测温元件选用进口KTY84系列产品。
       9. 可以根据需要配置制动器

1. Protection level
The motor is rated IP20 (open) or IP44 (closed).
2. Cooling method
The motor is cooled by IC410 (natural cooling) or IC411 (self-fan cooling).
3. Structure and installation type
The motor can be mounted vertically or horizontally, and the shaft extension type is cylindrical, conical, internal spline, and external spline.
4. Insulation class
The motor uses Class H insulation, which effectively increases the service life of the motor.
5. The stator adopts VPI vacuum pressure dipping process to improve the overall insulation capacity and mechanical strength.
6. The rotor is specially designed to increase efficiency and torque.
7. The encoder uses SKF bearing built-in encoder or external encoder.
8. The temperature measuring components are made of imported KTY84 series products.
9. Brake can be configured as needed

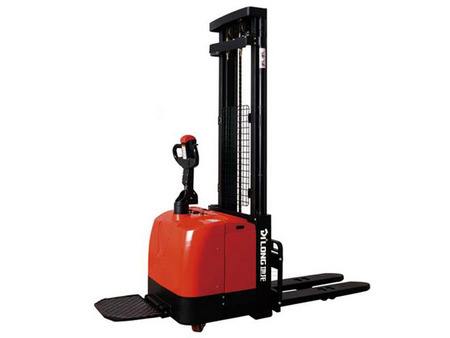

特点
       德国型钢门架,车身牢固
       交流立式驱动系统,马力强劲,电机无需维护
       配备电子助力系统,手柄与驱动系统完全脱离,操作力小可防止地面不平、驱动系统颠簸而造成的轮盘打滑现象,
       大功率牵引电池,一次性工作时间长。

Characteristics
German steel gantry with a solid body
AC vertical drive system with powerful horsepower and no maintenance on the motor
Equipped with an electronic power assist system, the handle is completely separated from the drive system, and the small operating force prevents the wheel from slipping due to uneven ground and the bumping of the drive system.
High-power traction battery, long working time.

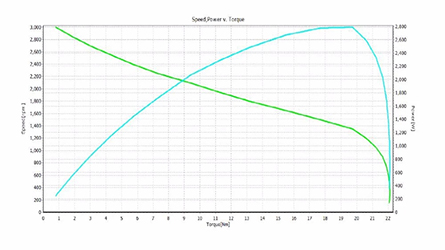

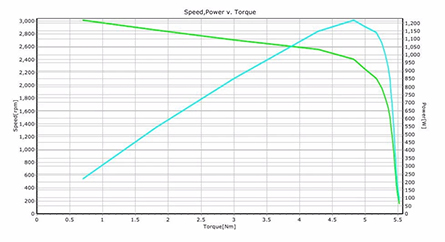

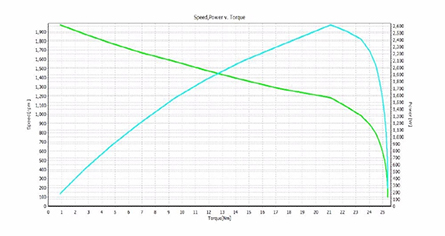

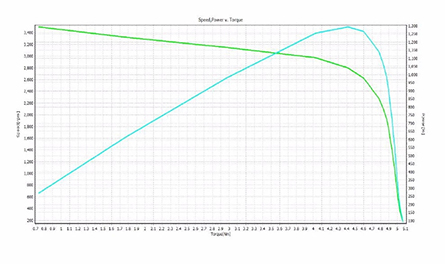

技术数据
型号 功率 电压 电流 功率因数 频率 转速 额定转矩 最大转矩 效率 噪音 振动 编码器/脉冲
LOG0.75-90S-4 0.75 16 43 0.75 89.9 2600 2.75 34.2 79.7 60.0 0.8 48/32
LOG1.2-90S-4 1.2 23 43 0.81 79.1 2270 5.05 48.3 79.7 80.0 1.2 48/32
LOG1.5-90L-4 1.5 16 76 0.83 88.9 2590 5.53 20.9 81.1 61.0 1.0 48/32
LOG2.0-90L-4 2.0 16 100 0.82 115.2 3362 5.68 27.2 80.4 61.5 1.1 32
LOG2.5-90L-4 2.5 16 120 0.85 116.2 3352 7.12 29.3 80.7 61.5 1.5 32
LOG3.0-100S-4 3.0 33 73 0.81 89.4 2638 10.86 69.3 92.5 61.0 1.3 64/32
LOG4.0-100S-4 4.0 33 95 0.77 87.6 2580 14.81 58.5 89.2 60.5 1.4 64/32
LOG4.0-100L-4 4.0 51 57 0.79 123.9 3680 10.38 77.6 89.2 60.5 1.5 64/32
LOG5.0-100L-4 5.0 51 78 0.81 112.7 3332 14.33 78.9 89.4 61.0 1.3 64
LOG5.0-100L-4 5.0 33 113 0.87 119.3 3520 13.57 54.3 89.0 61.5 1.6 64
LOG4.0-112S-4 4.0 33 95 0.88 60.0 1710 22.34 118.2 84.1 60.0 0.7 64/32
LOG7.0-112L-4 7.0 51 102 0.89 104.4 3065 21.81 110.5 85.4 63.2 1.2 64
LOG9.0-132S-4 9.0 51 135 0.88 52.8 1444 59.52 140.5 84.0 64.3 1.2 32
LOG11-132L-4 11 51 158 0.89 80.0 2237 46.96 158.0 82.4 68.1 1.5 32
LOG13-160S-4 13 51 175 0.88 80.0 2308 53.80 172.4 86.0 69.2 1.6 32
LOG15-160L-4 15 51 192 0.89 85.0 2550 56.20 190.5 87.0 69.8 1.6 3
