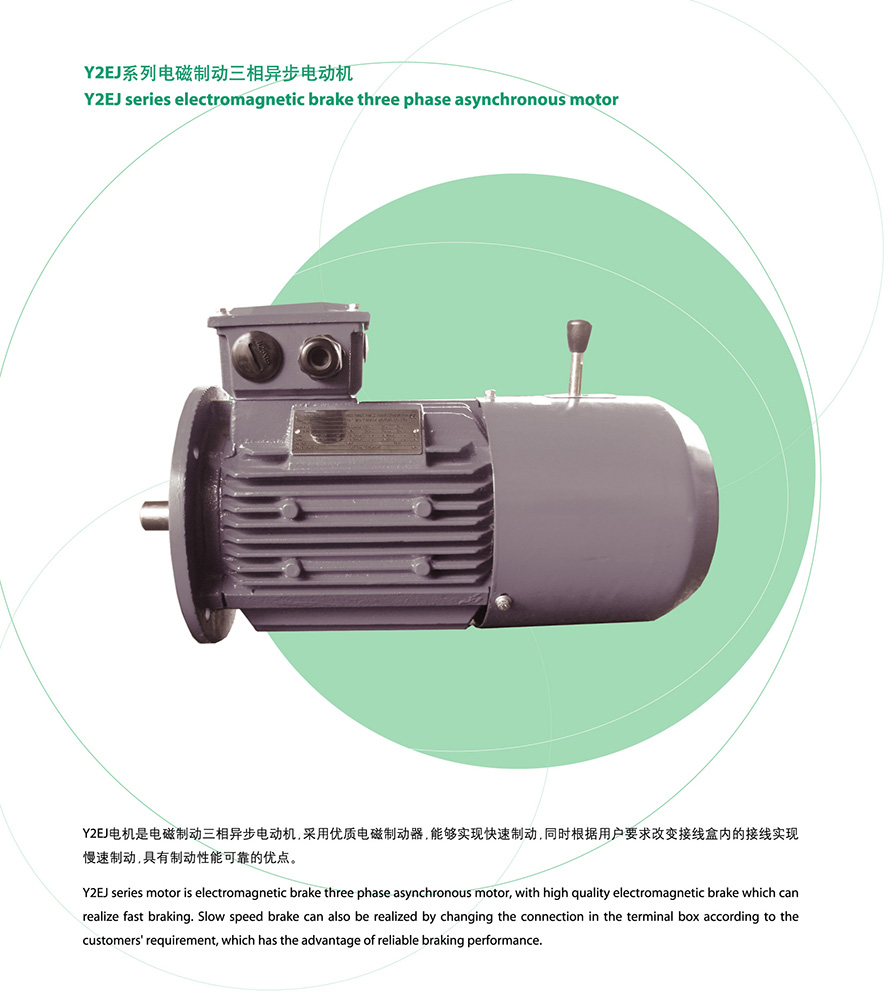

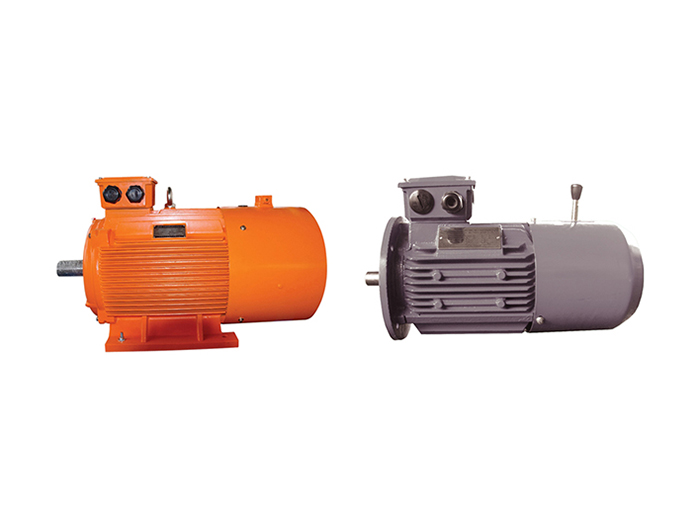

电动机简介
Y2EJ系列电磁制动电机是Y系列电机的派生系列，所以要了解Y系列电机参数的请看这里。Y2EJ系列电磁制动三相异步电动机是一种全封闭自扇冷式鼠笼型三相异步电机。该系列电机按照IEC标准设计，具有启动转矩大，结构紧凑、制动迅速、运行可靠、搞笑节能、噪音低等优点。此外，电机设计有手动释放结构，既可以电磁制动，又可以手动操作，方便用户调试和使用。
Y2EJ系列电磁制动电机适用于要求快速停止、准确定位、往复运转、频繁启动、防止滑行的各类机械设备中作为动力，如升降机、减速机、运输机械、包装机械、食品机械、印刷机械等。
原理与结构：Y2EJ系列电磁制动电机的滞留圆盘制动器安装在电机非轴伸端上，当电机接入电源，制动器即开始工作，在电磁引力作用下，电磁铁吸引衔铁并压缩弹簧，制动盘与衔铁、端盖脱开，电机开始运转；当切断电源时，制动器电磁铁市区阴历，弹簧推动衔铁压紧制动盘，在摩擦力的作用下，电机立即停止工作。制动器分为通电制动器和失电制动器两种，两种制动器工作原理相同，而制动过程相反。
Y2EJ系列电机可以衍生出YDEJ系列多俗制动电机和YVFEJ系列变频制动电机，也可以根据需要把制动器装配到YE2系列电机上，成为Y2EJ2系列电磁制动电机。
Y2EJ电机全称是：Y2EJ系列电磁三相异步制动电机（简称：Y2EJ系列电磁制动电动机），是全封闭、自扇冷、鼠笼型附加直流电磁铁制动器的三相异步电动机，是在Y系列电动机的后端盖与风扇之间附加一个直流盘式电磁制动器组成，是Y系列的派生系列。
Motor introduction
Y2EJ series electromagnetic brake motor is a derivative series of Y series motor, so please understand here to understand the parameters of Y series motor. Y2EJ series electromagnetic brake three-phase asynchronous motor is a fully enclosed fan-cooled squirrel cage three-phase asynchronous motor. The series of motors are designed according to IEC standards and have the advantages of large starting torque, compact structure, fast braking, reliable operation, funny energy saving and low noise. In addition, the motor is designed with a manual release structure that can be either electromagnetically braked or manually operated for user commissioning and use.
Y2EJ series electromagnetic brake motor is suitable for power in all kinds of mechanical equipment that requires fast stop, accurate positioning, reciprocating operation, frequent start, and prevention of sliding, such as elevators, reducers, transportation machinery, packaging machinery, food machinery, printing machinery, etc. .
Principle and structure: The retaining disc brake of Y2EJ series electromagnetic brake motor is installed on the non-shaft extension end of the motor. When the motor is connected to the power supply, the brake will start working. Under the action of electromagnetic attraction, the electromagnet attracts the armature and compresses the spring. When the power plate is disconnected from the armature and the end cover, the motor starts to run; when the power is cut off, the brake electromagnet is in the urban lunar calendar, and the spring pushes the armature to press the brake disc. Under the action of the friction force, the motor immediately stops working. The brakes are divided into two types: the energized brake and the de-energized brake. The two brakes work in the same principle, and the braking process is reversed.
Y2EJ series motors can be derived from YDEJ series multi-function brake motor and YVFEJ series variable frequency brake motor. It can also be assembled to YE2 series motor as needed to become Y2EJ2 series electromagnetic brake motor.
Y2EJ motor full name is: Y2EJ series electromagnetic three-phase asynchronous brake motor (referred to as: Y2EJ series electromagnetic brake motor), is a three-phase asynchronous motor with fully enclosed, self-fan cooling, squirrel cage type DC electromagnet brake, is in Y series A DC disc type electromagnetic brake is added between the rear end cover of the motor and the fan, which is a derivative series of the Y series.
电动机使用条件
环境温度 -15℃～40℃
海拔不超过1000米
额定电压 380V、400V、415V
额定频率 50Hz、60Hz
接法 "额定功率3KW及以下电机为Y接法，
额定功率4KW及以上电机为△接法"
工作制连续工作制（S1）
防护等级电机IP44/IP54
制动器部分为IP23
绝缘等级B级/F级
冷却方式IC0141
Motor use condition
Ambient temperature -15 ° C ~ 40 ° C
Altitude does not exceed 1000 meters
Rated voltage 380V, 400V, 415V
Rated frequency 50Hz, 60Hz
Connection method "The motor with rated power of 3KW and below is Y connection method.
The motor with rated power of 4KW and above is △ connection method"
Work system continuous work system (S1)
Protection class motor IP44/IP54
The brake part is IP23
Insulation class B / F
Cooling method IC0141
电机应用范围
适用于各类要求快速制动、准确定位、往复运转、频繁起动、制动的各种机械，作为主传动和辅助传之用的机械设备。例如：电动阀门、橡胶化工机械、金属加工机床、包装机械、木工机械、食品机械、化工机械、纺织机械、建筑机械以及齿轮减速机等。
Motor application range
Applicable to all kinds of machinery that require fast braking, accurate positioning, reciprocating operation, frequent starting and braking, as the main equipment for auxiliary transmission and auxiliary transmission. For example: electric valves, rubber chemical machinery, metal processing machine tools, packaging machinery, woodworking machinery, food machinery, chemical machinery, textile machinery, construction machinery and gear reducers.
特点
制动可靠、制动力矩可调、转子无轴向窜动、使用方便。

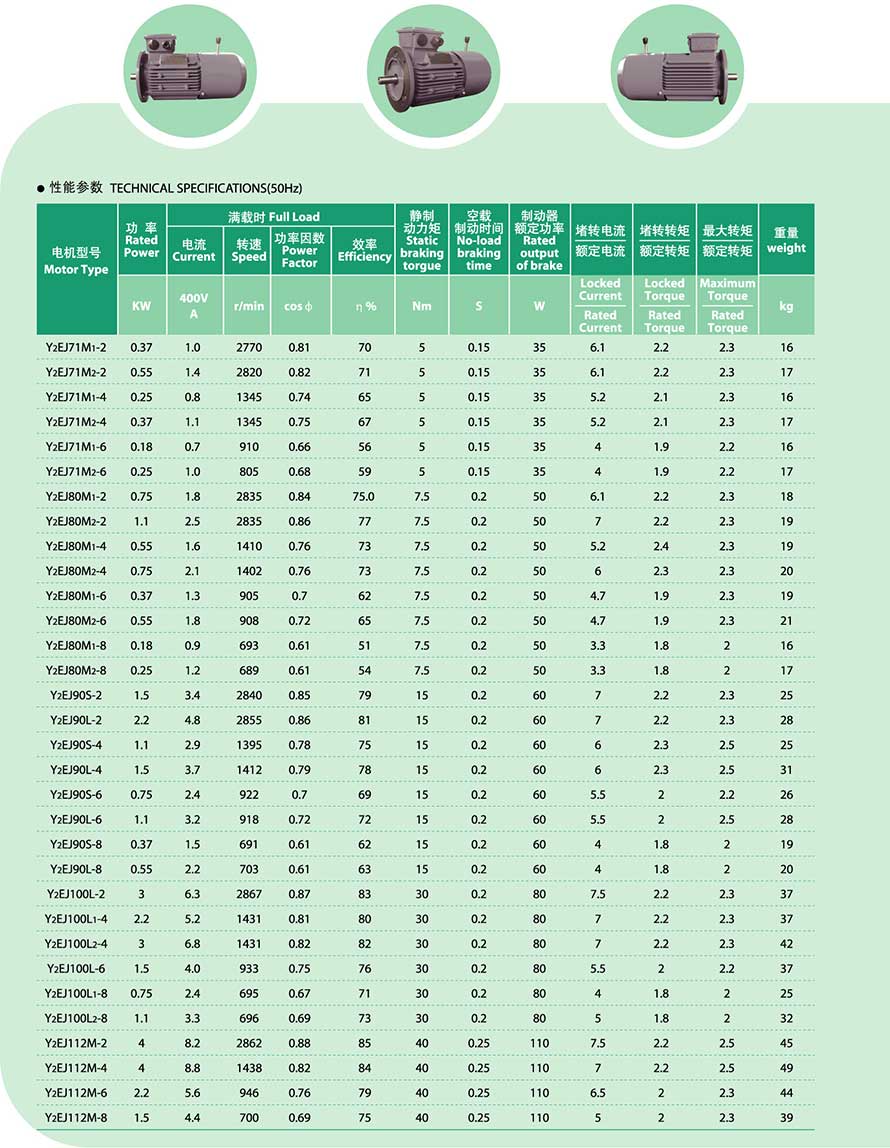

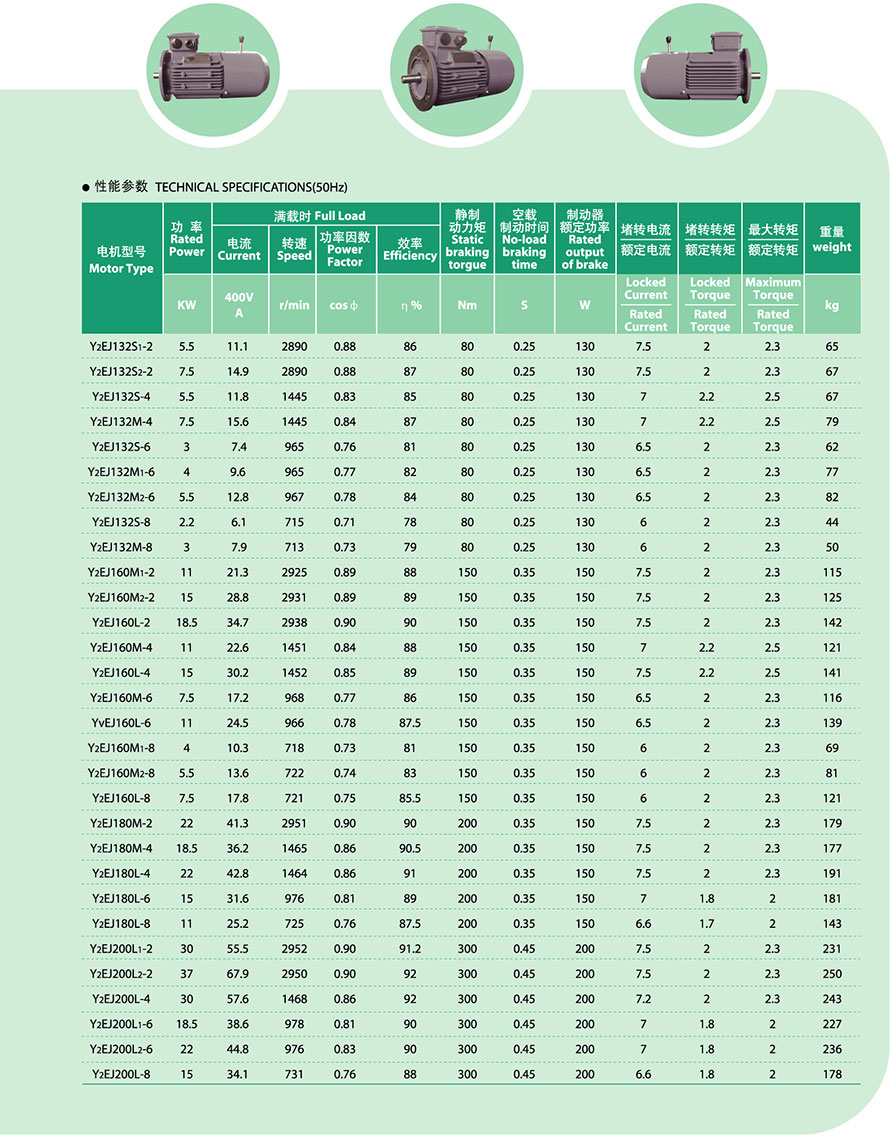

Y2EJ电机标准型式
电动机符合JB/T6428--92的要求。
电动机额定电压为380V，额定频率为50HZ，外壳防护等级为IP44，制动器为IP23，冷却方法为IC411，基准工作制为连续工作制SI，绝缘等级为B级。
Characteristics
Reliable braking, adjustable braking torque, no axial movement of the rotor, easy to use.
Y2EJ motor standard type
The motor complies with the requirements of JB/T6428--92.
The rated voltage of the motor is 380V, the rated frequency is 50HZ, the protection grade of the enclosure is IP44, the brake is IP23, the cooling method is IC411, the reference work is made of continuous working system SI, and the insulation grade is B grade.
原理与结构
Y2EJ型制动电动机的直流圆盘制动器安装在电机非轴伸端的端盖上，当制动电动机接入电源，制动器也同时工作，由于电磁吸力作用电磁铁吸引衔铁并压缩弹簧，制动盘与衔铁、端盖脱开，电动机开始连转。当切断电源时，制动器电磁铁失去电磁吸力、弹簧推动衔铁压紧制动盘，在磨擦力矩的作用下，电动机立即停止转动。
Principle and structure
The DC disc brake of the Y2EJ brake motor is mounted on the end cover of the non-shaft end of the motor. When the brake motor is connected to the power supply, the brake also works at the same time. Due to the electromagnetic attraction, the electromagnet attracts the armature and compresses the spring, and the brake disc is The armature and end cover are disengaged and the motor starts to rotate. When the power is cut off, the brake electromagnet loses the electromagnetic attraction, and the spring pushes the armature to press the brake disc. Under the action of the friction torque, the motor immediately stops rotating.

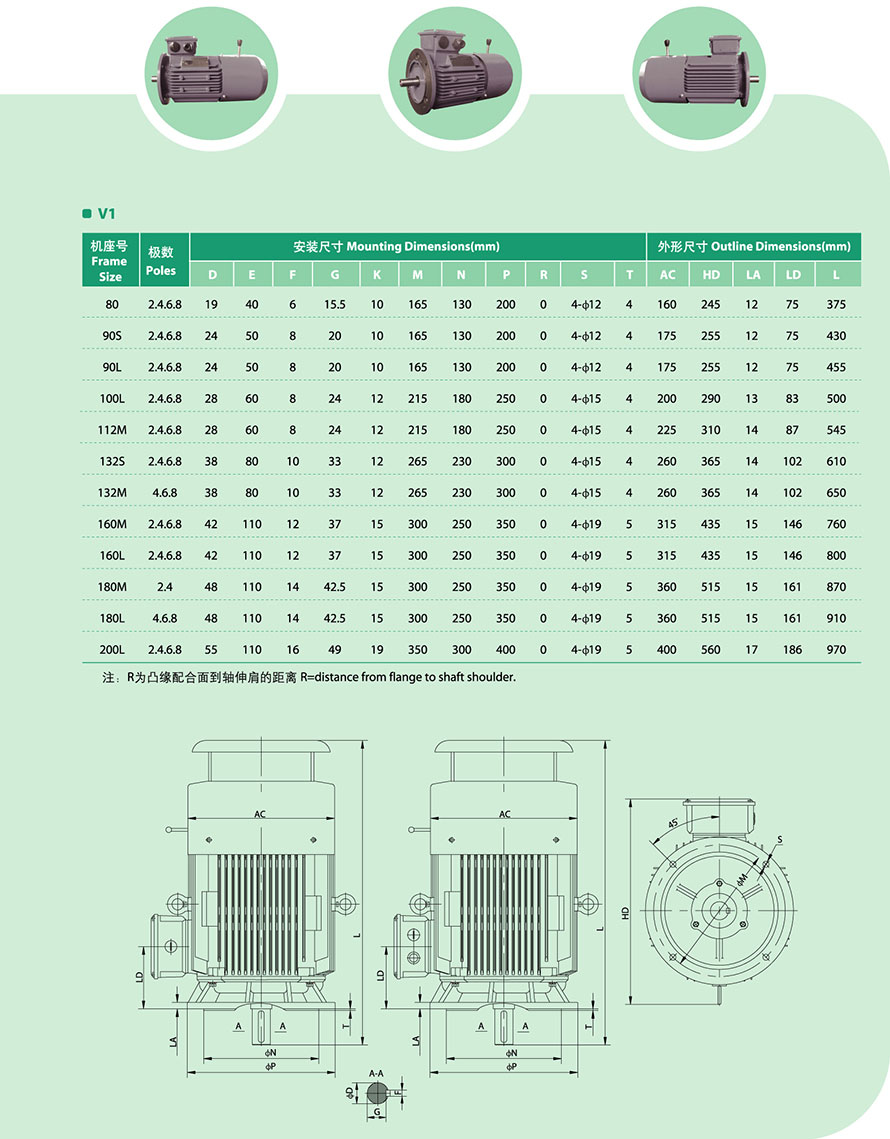

电机安装形式

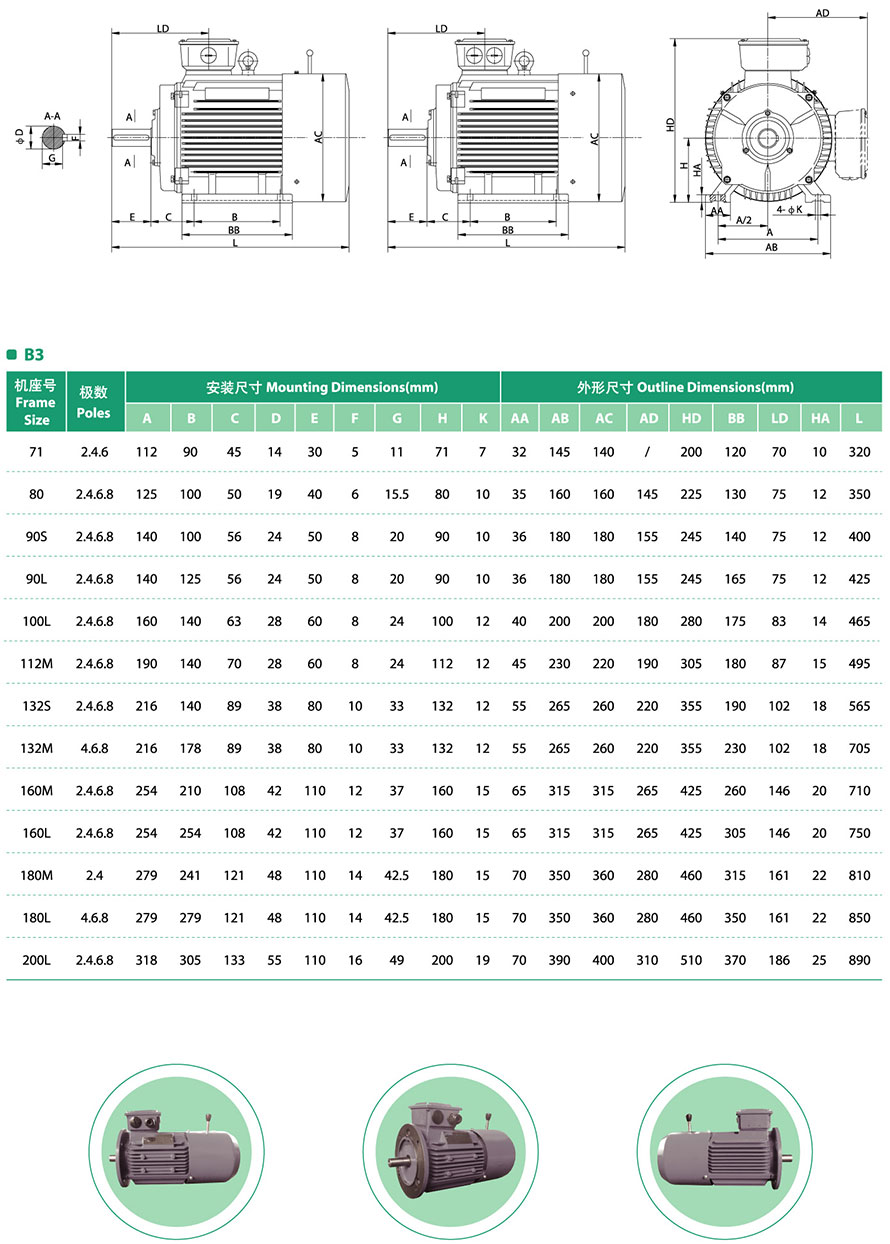

B3：机座带底脚，端盖无凸绝。

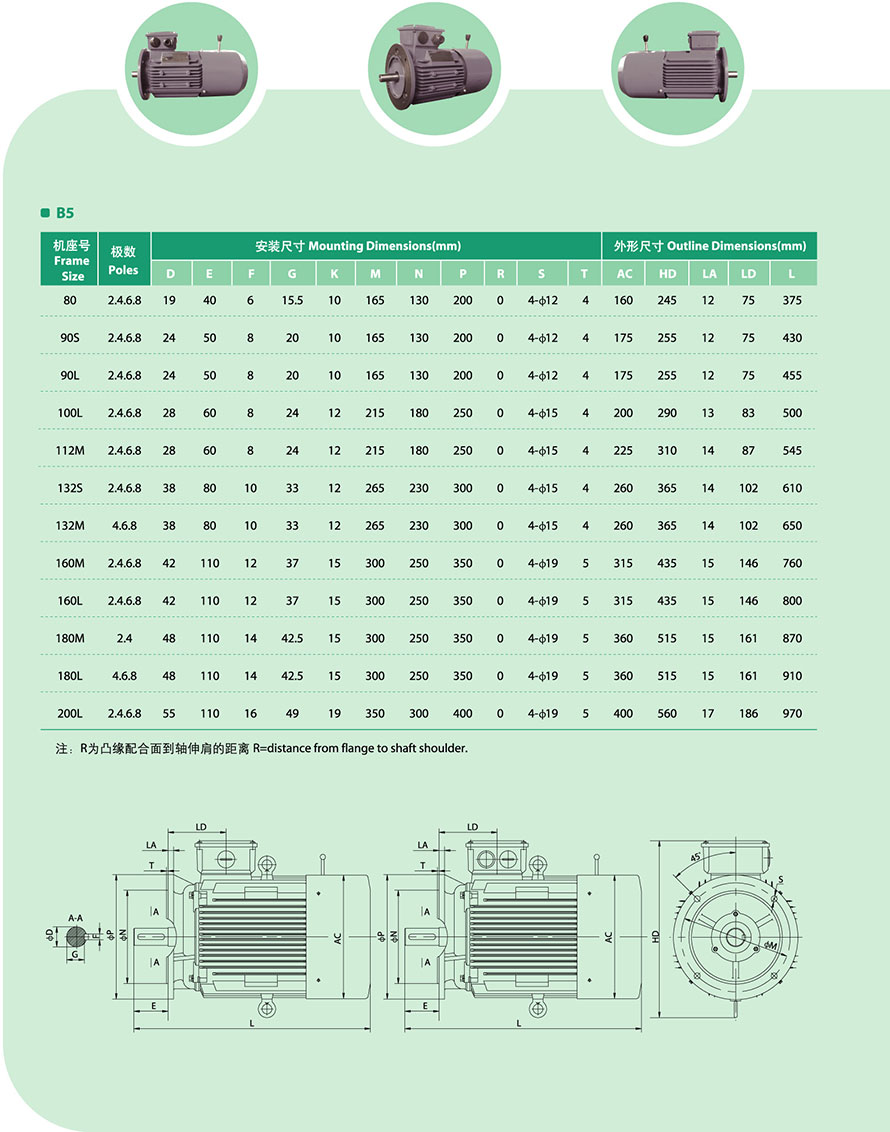

B5：机座不带底脚，端盖有凸绝。

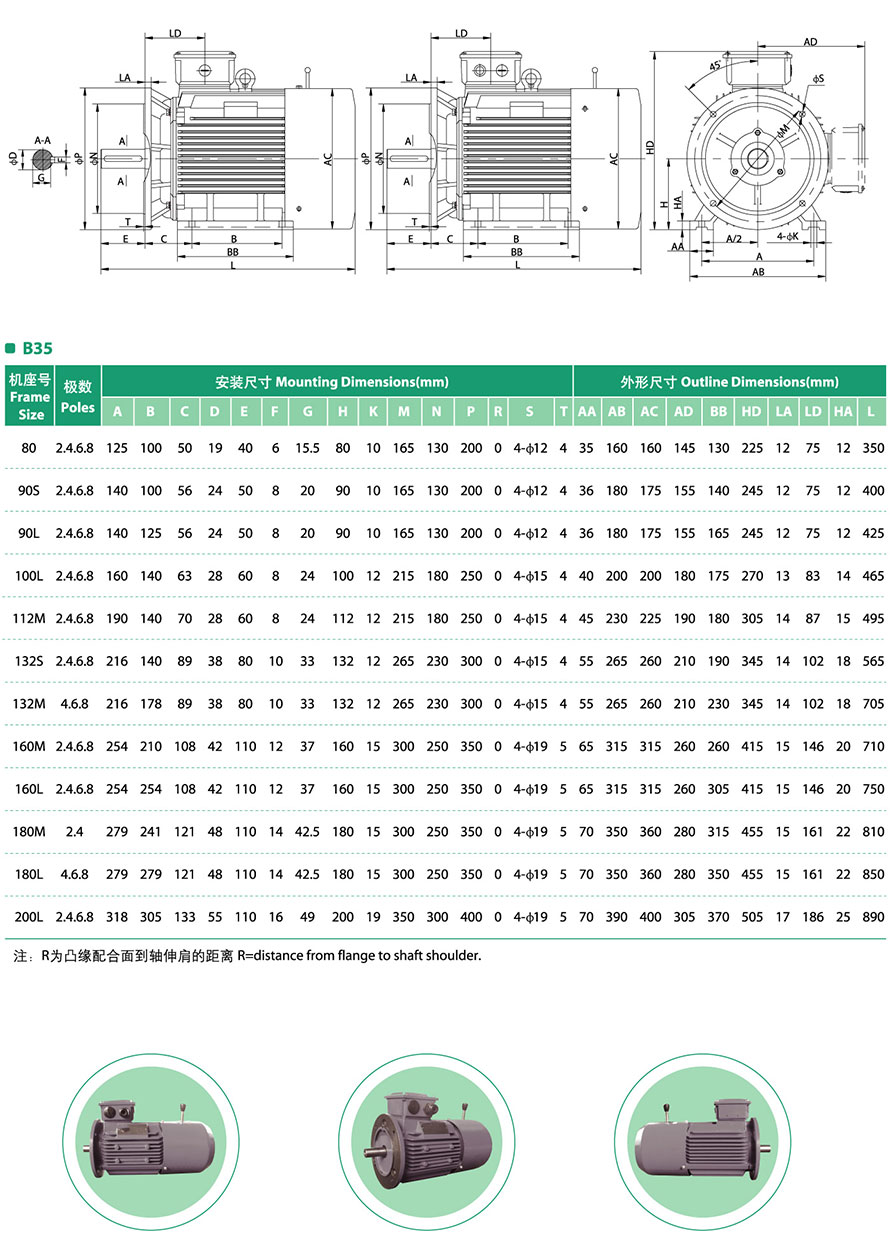

B35：机座带底脚，端盖有凸绝。
Motor installation form
B3: The base has a foot and the end cover is not convex.
B5: The base does not have a foot, and the end cover is convex.
B35: The base has a foot and the end cover is convex.

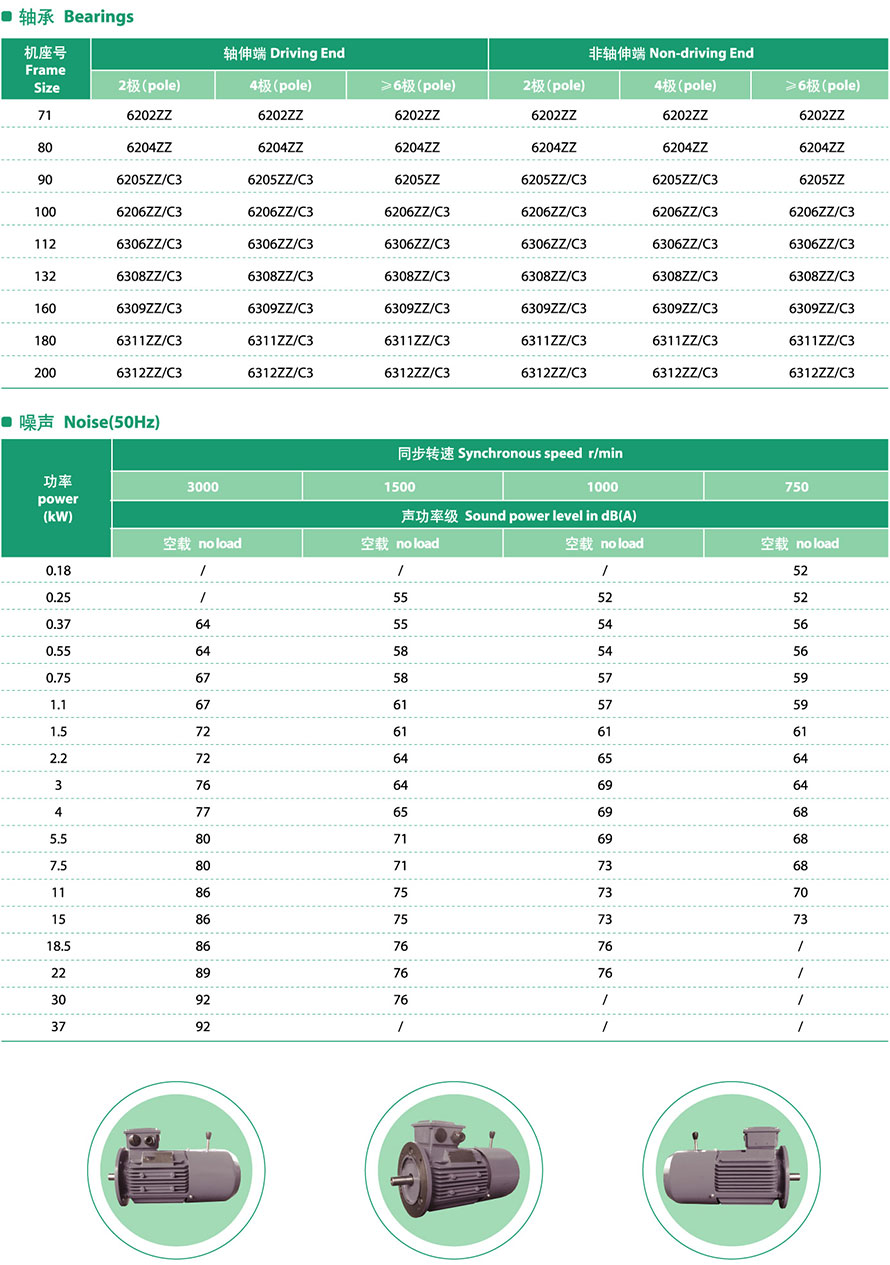

电机特点
1. 刹车器结构简单，零件少，信赖性高，气隙调整容易，保养方便；
2. 选用进口优良轴承，使用寿命长。
3. 刹车频度高。刹车片上使用特殊方式粘贴附上高质石棉板，可耐较高频度的使用。磨耗率低，且无公害；
4. 刹车器电源由电机直接供应，可依不同接线方式，取电压（AC200～240V），经整流器整流为直流电源（DC80～100V）；
5.采用DC直流刹车，无电磁声，刹车噪音低；
6. 体积小、重量轻、安装容易。电机与刹车器连为一体，体积减至很小，重量亦轻。结构牢固，小空间即可安装；外形及安装尺寸性能参数同标准Y系列电机；
1. The brake has simple structure, few parts, high reliability, easy air gap adjustment and convenient maintenance;
2. The imported excellent bearing is used and has a long service life.
3. The braking frequency is high. The brake pads are attached to the high-quality asbestos board in a special way, which can withstand higher frequency. Low wear rate and no pollution;
4. The brake power supply is directly supplied by the motor. According to different wiring methods, the voltage (AC200～240V) can be taken and rectified into DC power supply (DC80～100V) by the rectifier;
5. Adopt DC DC brake, no electromagnetic sound, low brake noise;
6. Small size, light weight and easy to install. The motor and the brake are integrated into one, the volume is reduced to a small size and the weight is light. The structure is firm and can be installed in a small space; the shape and installation dimensions and performance parameters are the same as the standard Y series motor;
